型号：Model

 组件: Components

 连接器: Connectors

 频率响应: Frequency Response

 灵敏度: Sensitivity(1W/1M)

 声压: Maximum sound pressure

 额定功率: Rated Power

 功率: Maximum power

 覆盖范围: HF Dispersion

 标称阻抗: Nominal Impedance

 推荐功放机: Recommended Amplifiers

 尺寸（高×宽×深）:Dimensions(H×W×D)

 重量: Weight

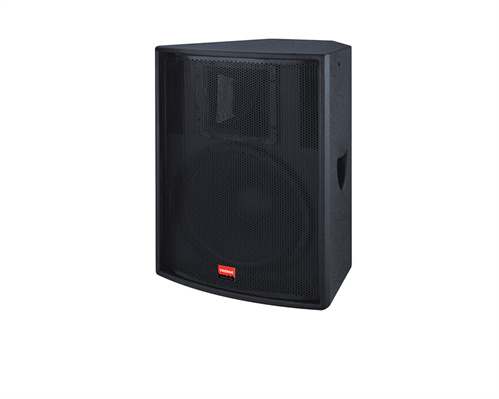

WF-12

LF 1×12" (300mm)

HF 1×1.75" (44.4mm)

2×NEUTRIK  NL4

65Hz-20kHz±3dB

99dB

120dB

300Watts

600Watts

80°Hor. ×50°Vert.

8Ω

200 to 300Watts into 8Ω

571×398×365mm

21kg
